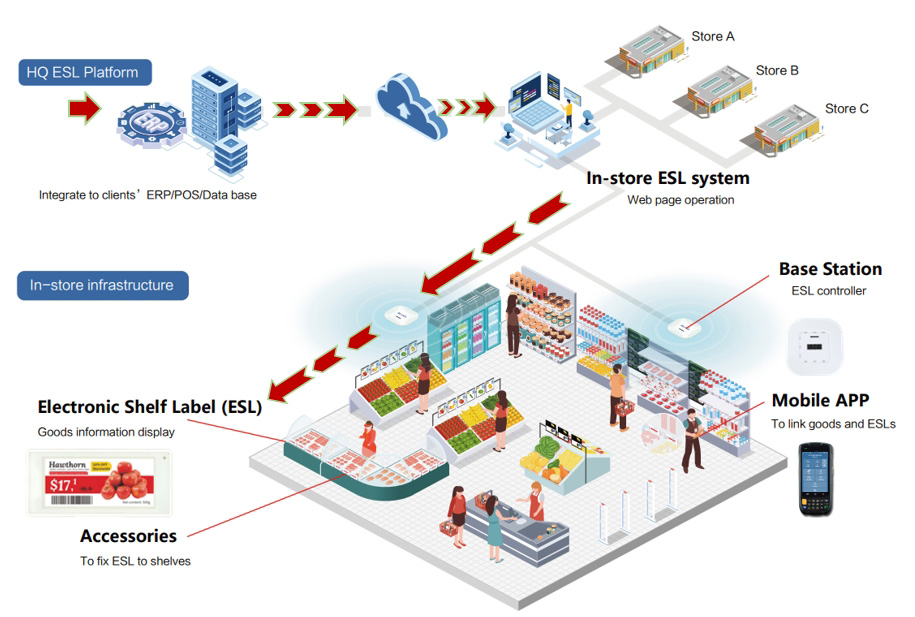

- The 2.4G electronic shelf label kit of the eRetail3.2 system includes the e-ink electronic shelf labels of this series, matching ESL base station, and mounting strips. This kit includes not only four-color electronic paper labels but also a low-temperature e-ink electronic labels of 2.13 inch, with an operating temperature of -25~10℃.
- This series of electronic price tags uses wireless transmission, with a communication distance of up to 30m (up to 50m in open areas), real-time update of display information, and can display text, pictures, QR codes, barcodes, etc.
- * Public Account 2 months' free using time

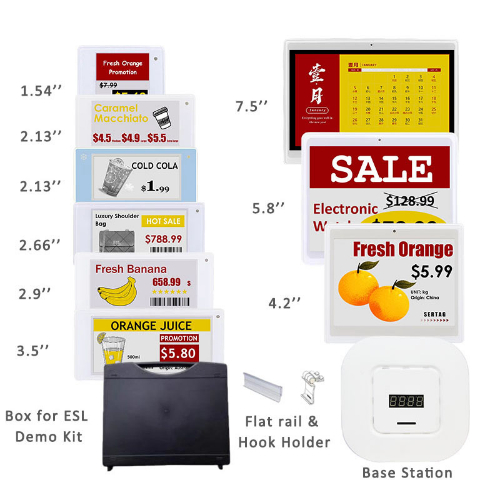

Package Includes
1 x 1.54 inch electronic shelf label
1 x 2.13 inch electronic shelf label
1 x 2.13 inch low temperature electronic shelf label (-25~10℃）
1 x 2.66 inch electronic shelf label
1 x 2.9 inch electronic shelf label
1 x 3.5 inch electronic shelf label
1 x 4.2 inch electronic shelf label
1 x 5.8 inch electronic shelf label
1 x 7.5 inch electronic shelf label
1 x Electronic shelf label access point SETAP05
1 x Electronic shelf label holder
1 x Electronic shelf label flat rail
1 x Box for ESL demo kit
| Product Model | SETAP05 | Dimensions (mm) | 190 × 190 × 41 |
|---|---|---|---|
| Operating Voltage | DC12V, PoE | Operating Current | ＜300mA |
| Wireless Connectivity | Private Protocol | Communication Distance | 20~50m |
| Data Interface | Standard Network Cable Interface | Configuring Interface | USB2.0 |
| Working Temperature | -10~55℃ | Storage Temperature | -20~70℃ |
| Nixie Tube Context | Working Station and AP Number | Indicator Light Condition | Blue LED: Power Indicator Red LED: Working Indicator |
1. 2.4G 1.54 inch 4-Colors Electronic Label SETRV3-0154-80 Specification
2. 2.4G 2.13 inch 4-Colors Electronic Label SETRV3-0213-81 Specification
3. 2.4G 2.13 inch Low Temp. Electronic Label SETRV3-0213-39 Specification
4. 2.4G 2.66 inch 4-Colors Electronic Label SETRV3-0266-82 Specification
5. 2.4G 2.9 inch 4-Colors Electronic Label SETRV3-0290-84 Specification
6. 2.4G 3.5 inch 4-Colors Electronic Label SETRV3-0350-86 Specification
7. 2.4G 4.2 inch 4-Colors Electronic Label SETRV3-0420-87 Specification
8. 2.4G 5.8 inch 4-Colors Electronic Label SETRV3-0580-88 Specification
9. 2.4G 7.5 inch 4-Colors Electronic Label SETRV3-0750-89 Specification
10. 2.4G Electronic Label Base Station SETAP05 Specification
11. SETAP05 eStation User Manual
12. eRetail 3.2 System Integration Manual
13. eRetail3.2 App Manual
14. eRetail3.2 Setup Tool Deployment Manual
15. eRetail3.2 User Manual
16. eRetail3.2 Online Template Tool Manual
- Smart retail shelf labeling
- DIY smart storage labels
- Home pantry or tool organization
- Displaying QR codes, NFC tags, or custom notes
For more information, please visit our official websites:
www.eslmfg.com | www.lightpicksystems.com
For inquiries, contact us at: sales@sertag.com
