- Built-in Server Program – Equipped with a built-in server program, the router eliminates the need for external servers, simplifying the setup and reducing dependency on additional hardware.
- Efficient Data Transfer – The router facilitates efficient and reliable data transfer between devices, ensuring real-time communication and enhancing overall operational efficiency.
- Reliable Power Supply – Operates seamlessly on a 24V external power source, ensuring consistent performance.
- User-Friendly Interface – Featuring four buttons, including a prominent illuminated function for easy operation.
- Versatile Compatibility – Works efficiently in temperatures ranging from -10 to 65℃, adapting to various environments.

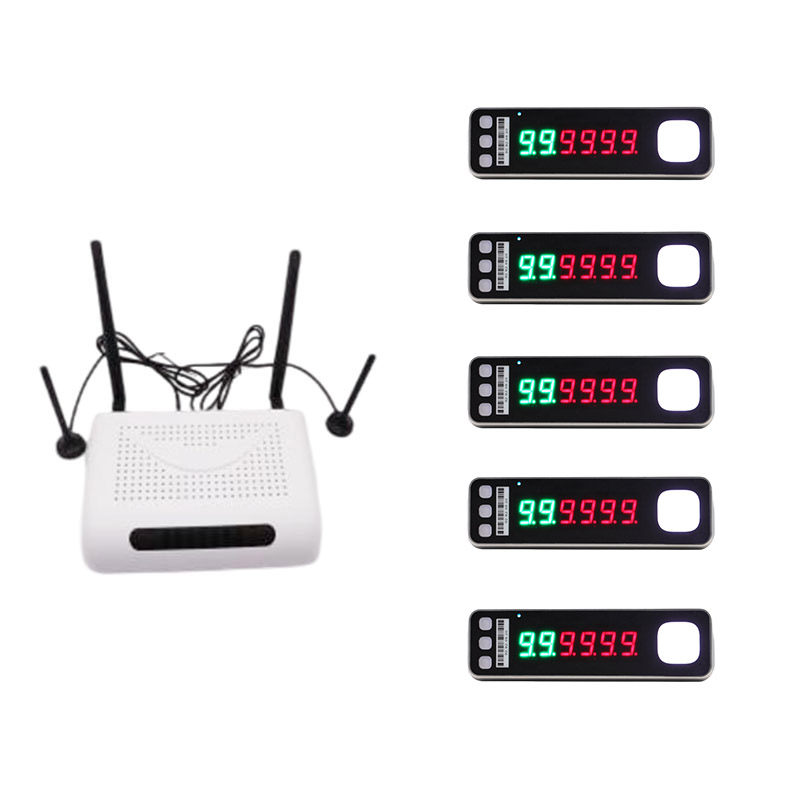

Package Includes
1) 1 × Pick to Light system built-in server base station SETP_Router_V1.5
2) 5 × LED Display Pick to Light Warehouse Electronic Label SETP_Label_V20(External Power Supply)
3) 1 × Power_DC24V: 24V power adapter
4) 1 × SETP_Wire_V1: Connect the DC power cable and the cascade cable - 30cm
5) 5 × SETP_Wire_V2: Optional cascade extension cable - 30cm
6) 5 × SETP_Wire_V6: Connect the Pick to Light electroinc label to the cascade cable - 20cm, 4-Pin
1. Pick To Light System-SETP_Label_V20
2. SETP_Label_V20 System Developer's Manual
3. SETP_Router_V1.5 Operate Steps
4. Pick to Light Operation Manual
| Product Model | SETP_Router_V1.5 | Network | 1 |
|---|---|---|---|
| The Antenna | 4 | Communication Mode | 868M, RJ45 |
| Power Supply | DC 12V 1A or POE | Dimension(cm) | 21 × 14 × 4.3 |
| Operating System | linux | Working Temperature | -10~70℃ |
| Wireless Distance | Radius 20~30m | Software Update | Yes |
| Number of Pick to Light Labels | ＞10000 | Server | Built in: Webserver: Tomcat Server System: JAVA Database: Mysql |
| Access | Web access | Service Interface Protocol | Http, Data format: Json |
| Product Model | SETP_Label_V20 | Button | 4 |
|---|---|---|---|
| Appearance of Size | 156x48x14.7mm | Indicator Light | 4 RGB Colorful indicator lights |
| Screen Display | Digital tube display 6-digital 0.8 inch | Working Temperature | -10~65℃ |
| Digital Tube Color | Green, Red | Viewing Angle | Nearly 180° |
| Displayabel Content | 0~999999 | Power Supply | DC 24V |
| Case Color | Black & Silver Gray | Communication Mode | Wireless |
| Wireless Firmware Update | Yes | Template Design DIY | Yes |
| Refresh Time | Average 30ms |
For more information, please visit our official websites:
www.eslmfg.com | www.lightpicksystems.com
For inquiries, contact us at: sales@sertag.com
